WB003

Feature

TECAR (or Targeted Radiofrequency Therapy (TR-Therapy): meaningCapacitive Resistive Electric Transference. It is a diathermy (i.e. deeptissue thermotherapy) therapeutic modality, therefore it uses increasesin local body tissue temperature, in combination with subthermal applic-ation to promote the body's healing response.


Feature:

1. Winback tech

2. Accept OEM

3. Qualitified model with medical CE test

4. Multifunction

INQUIRE

Specification

PowerMIx 35W; CET 165W; RET 165W
Frequency1 Mhz, 500 Khz , 300 Khz
FunctionMIX: RET: CET
ModesBasic, Swap; Low pulse, Super pulse
Accessories4 RETtips( 30mm,40mm, 60mm, 80mm); 5 CET tips(20mm, 30mm, 40mm, 60mm,.80mm); 2 MlX tips(35mm, 62mm); 2 Negative plates; Negative pad; Wristband
Power Supply Input100-240VAC,50-60Hz
Weight14Kg (Mainframe); 18Kg (Base)
Size490mm*430mm*260mm( Mainframe);490mm*430mm*1020mm(Base)


Details

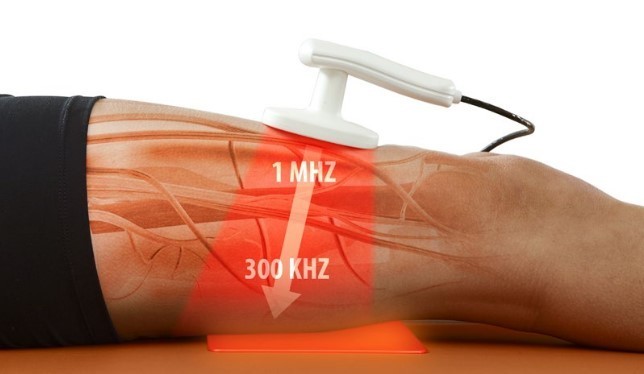

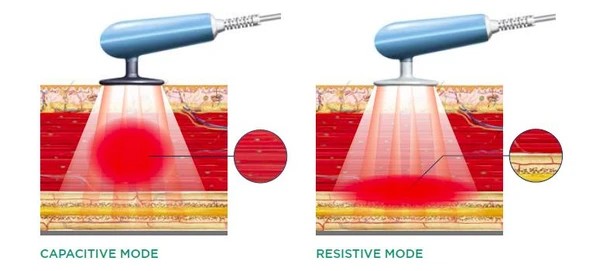

TECAR technology is non-ablative, non-invasive, using currents of high frequency, usually in the range between 300 KHz and 1 Mhz. It can work in two modes of energy transfer:

Capacitive mode: affects tissues with higher electrolytic content (soft tissues and muscles)

Resistive mode: affects tissues with higher resistance (joint, bone, tendon)

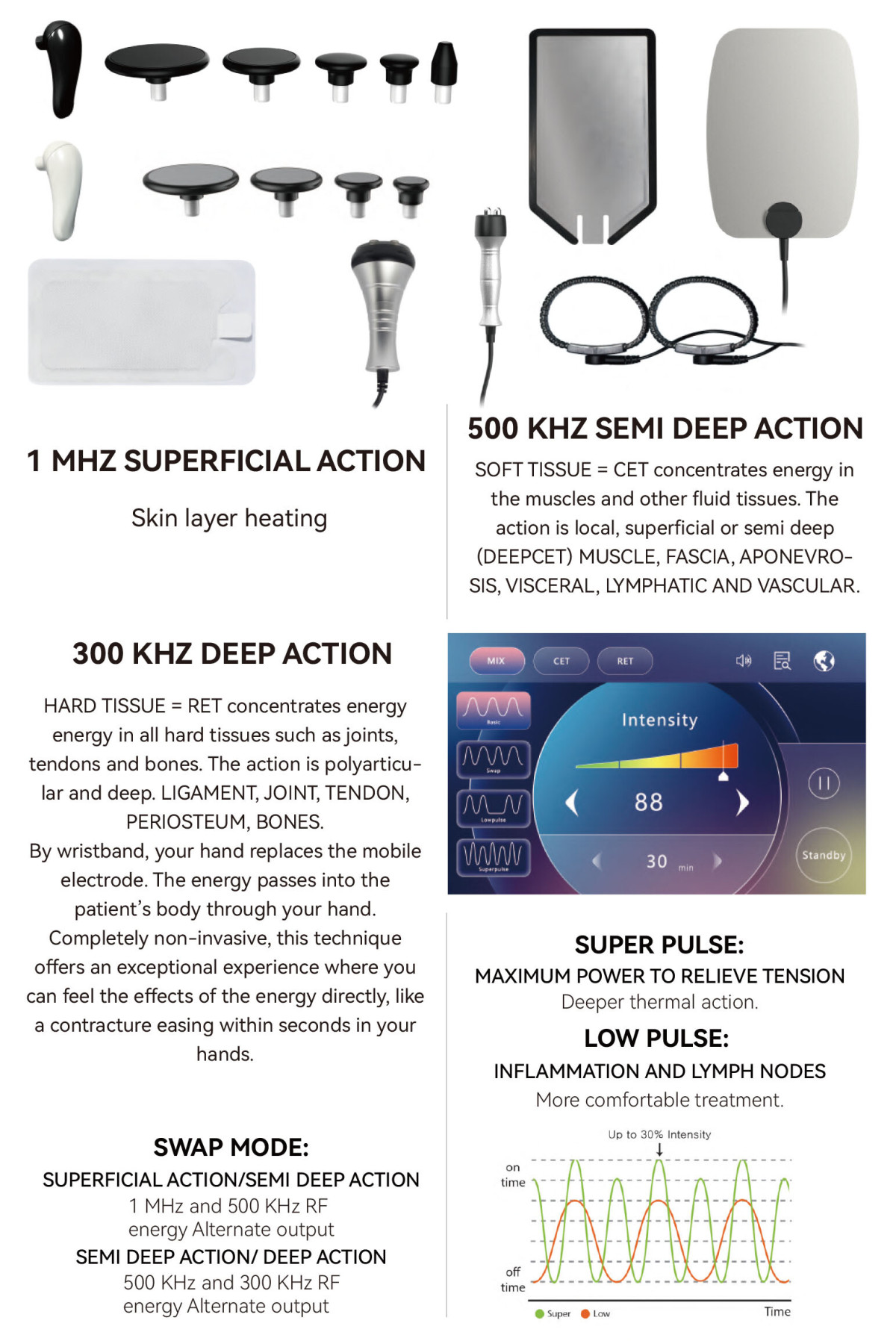

Tecar machine leaflife- Catalog- from Johnson-20230524-3.jpg

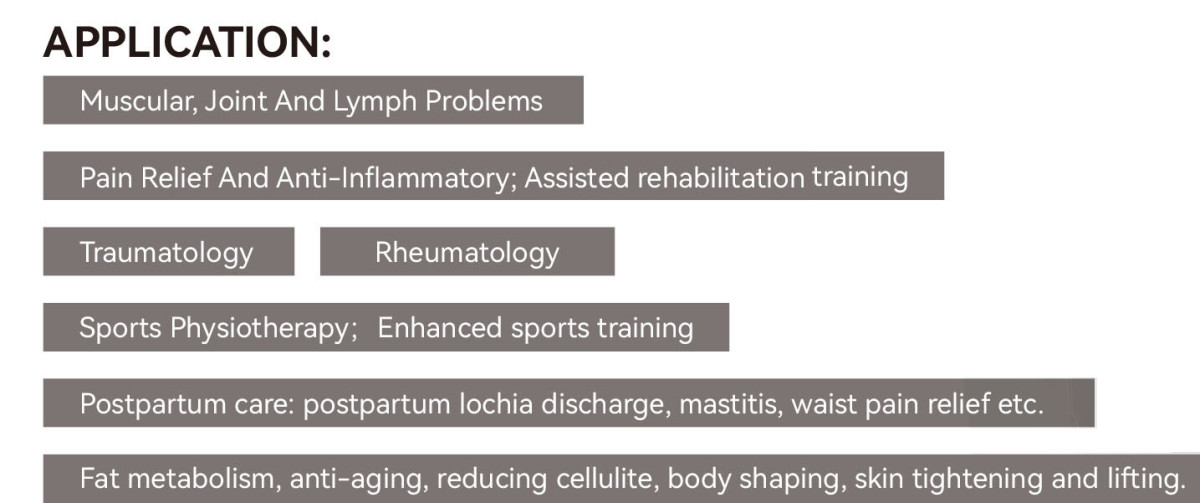

Tecar machine leaflife- Catalog- from Johnson-20230524-4.jpg
