HUMAN TECHNOLOGY FUTURE

Special company who focus on developing & manufacturing physical therapy and rehabilitation devices

Magnetic field stimulation

Feature

1. Maximum magnetic field stimulation intensity: 6T

2. Faster change rate of magnetic induction intensity

3. More abundant pulse width selection

4. Various stimulation modes: single pulse stimulation, repetitive pulse stimulation, burst stimulation and pelvic floor stimulation.

5. A new generation of liquid cooling circulation system

6. Double temperature control system to ensure the safety of equipment operation.


FEATURE:

1. LAN data sharing to realize group therapy

2. More than 120 built-in treatment prescriptions are convenient to use

3. The system integration scheme comes with an anatomical positioning map of the human brain

4. Detailed text description assists the operator in precise positioning


INQUIRE

Specification

Introduction

The bioelectric current generated by penetrating a powerful pulsed magnetic field to the human body instantaneously has an effect on each tissue of the human body through electro physiological mechanisms. In the case of muscle tissue, motor nerves connected to muscle tissue are stimulated to produce muscle contraction, and sensory nerves,blood vessels and bone tissue also have electro physiological effects

Specification

Item Nameelectromagnetic stimulation device
ModelTMS-P
Electromagnetic field intensity0~7Tesla
Stimulation frequency1~100Hz
Multi stimulating protocolssingle TMS, repetitive TMS, TBS (Theta Burst Stimulate)
Electrical ratingAC 230V~, 50/60Hz
Device size(W*L*H,mm)700X670X630
Weight120Kg

Principle

The bioelectric current generated by penetrating a powerful pulsed magnetic field to the human body instantaneously has an effect on each tissue of the human body through electrophysiological mechanisms. In the case of muscle tissue, motor nerves connected to muscle tissue are stimulated to produce muscle contraction, and sensory nerves, blood vessels and bone tissue also have electrophysiological effects. Powerful electromagnetic field of MAGREX works deep into muscle and nerve tissue to help relieve painful conditions and treat depression.

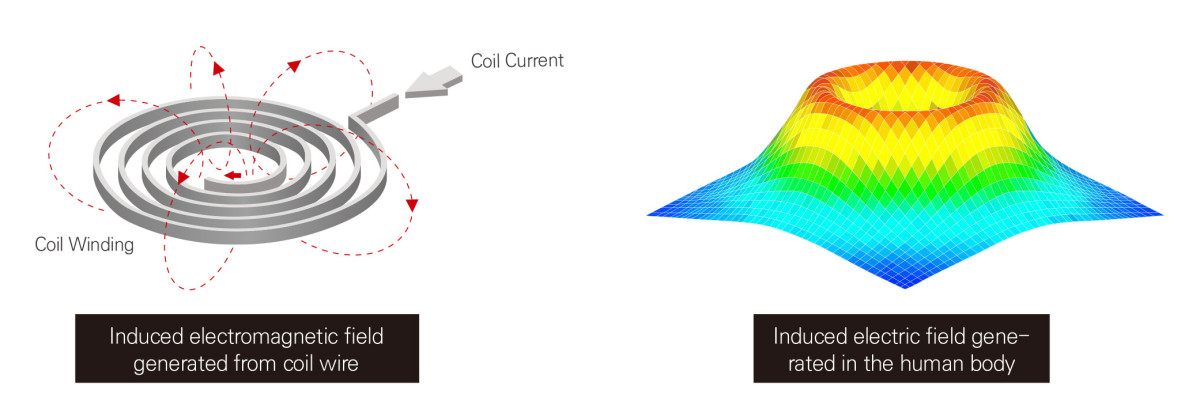

23_Magrex catalog(3)-1.jpg
