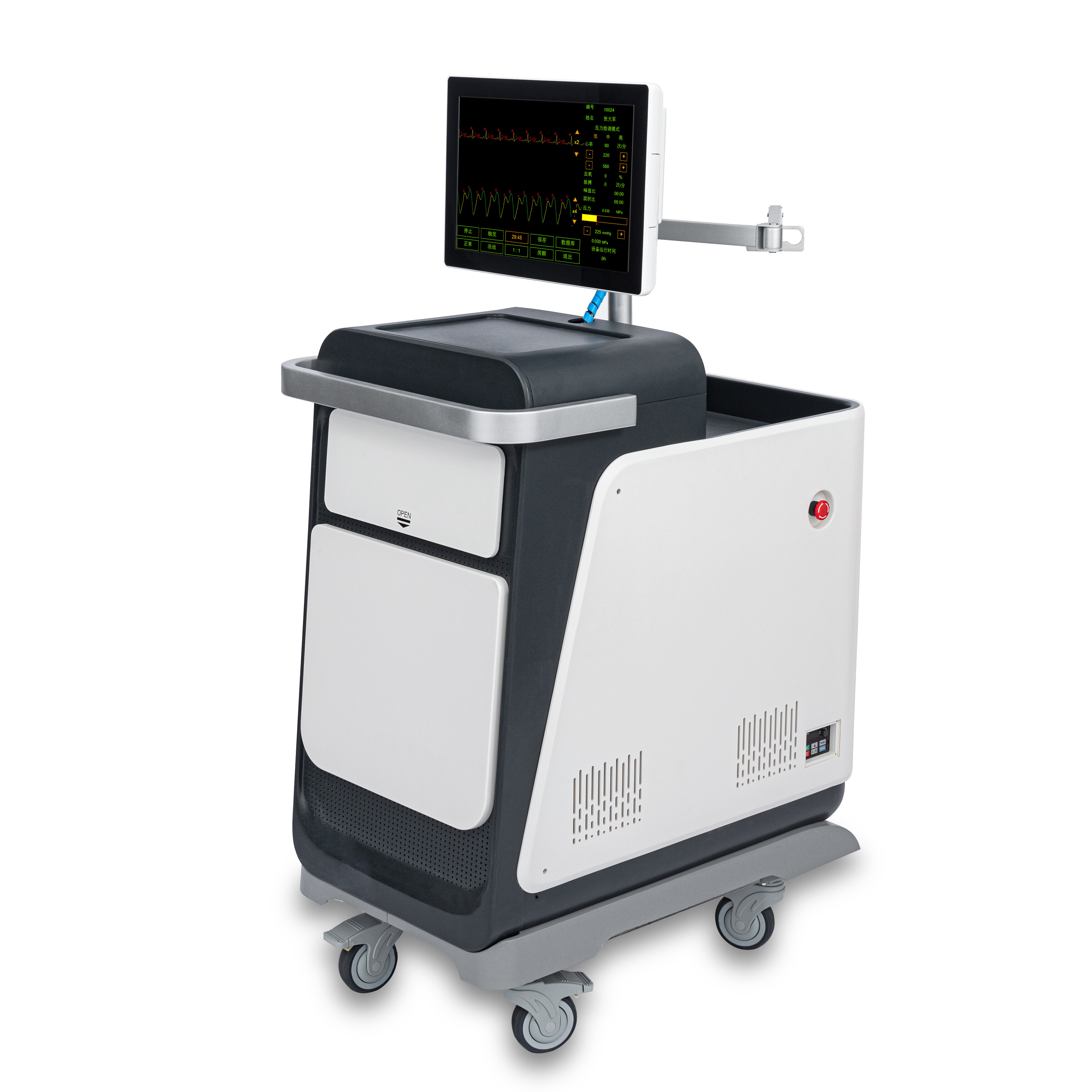

MODEL-OM-A-II

Feature

1. Low working noise, 61dB

2. Low consumption,environmental protection and energy saving.

3. Portable ECP machine. Good for home use

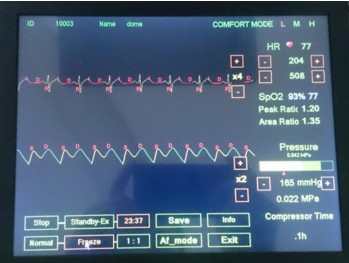

4. 18' touch screen monitor one page operation menu,easy and good to operate

5. Multiple automatic protection , fully gurantee patients safety.

6. Trigger auto protection system by:

• Press emergency button.

• Early extra systole.

• Pressure exceed max threshold

• Heart rate goes out of range.

• Power outage.


INQUIRE

Specification

ModelOM-A-II
Machine typePortable ECP Machine
ColorWhite
Operating systemOmay Customized system
CompressorBECKER
ValvesCustomized valves special for EECPmachine with low noise
and quick response,designed by Pro.Zheng Zhen Sheng
Monitor size18 inch
Monitor typeTouch-screen Monitor
Cuffs2 SET Cuffs for Calves,lower thighs and upper thigh
Treatment TimerSet treatment time and system automatically stops when set
Triggering MethodR-wave
ECG Trigger range40~120bmp
Trigger ratio1:1 or 1:2
Treatment pressure range5~350mmHG
Port2pc USB Port
Power requirement220V AC,50/60Hz,1500VA
Operating EnvironmentTemperature(10°C to 30°C)
Relative Humidity<85%
Atmospheric Pressure 700 to 1060 hPa
Atmospheric Free of corrosives gas
Machine Dimensions(L*W*H)                    82cm(L)x55cm(W)x135cm(H)
Net Weight100KG
G.W(with wooden packaging)180KG

Details







Certificate

CE
